Vango Airbeam Vango Balletto Air 330 Elements Shield Caravan Awning (2023)
Original price was: $324.00.$96.99Current price is: $96.99.
The Vango Balletto Air 330 Element Shield is a new caravan awning, which is part of the entry-level Elements Shield collection, offering lightweight, easy-to-pitch touring shelters. The Balletto 330 Elements has a great deal to admire, including the Single-Point inflation system, the lightweight, effective 150 Denier polyester fabric, and versatile optional additions to provide more sleeping space, storage, or comfort.
- Get the Best for Less
- Worry-Free Shopping with Safe Payments
- Prompt service, every time.
- Friendly, efficient service, always online.

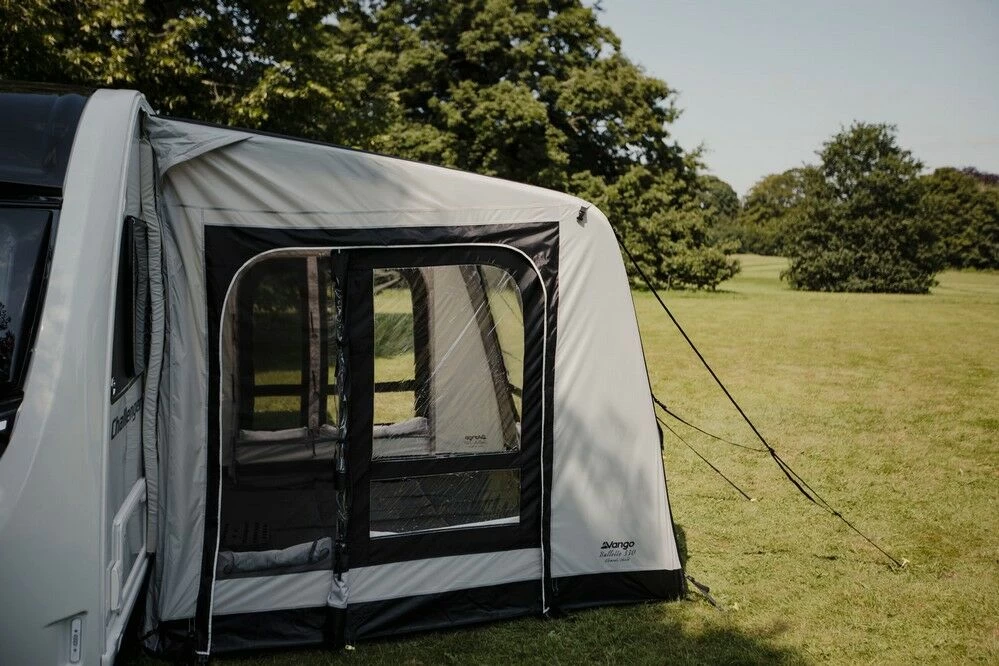

The Vango Balletto 330 Elements Shield Caravan Awning is a lightweight touring product, perfect for those wanting a versatile product, packed with technical features. The introduction of Single-Point inflation has revolutionalised the Vango collection, offering an easy-to-pitch design, which is perfect for weekends away or short-term holidays. The Balletto 330 features two side doors, and two front doors, and is customisable, as side doors can be removed to add on annexes for additional sleeping space, or storage space. The front doors can be replaced with mesh doors, giving more climate control in warmer conditions. Further to this, there is also an optional carpet, for warmth and comfort underfoot.
Draught Seal System: a secure seal against the side of the caravan, eliminating poles from the process, which can cause damage in poor weather conditions. Instead, the seal system works with tension straps and foam pads, to securely, and snugly fit onto the side of the van, and work around windows also.
Single-Point Inflation: Inflating the Balletto 330 from just one valve, combined with the Turbo pump, makes for a brilliant pitching system. The S.I Pro system also has an intelligent design, ensuring if there is an issue with a leaking valve, only one beam is compromised.
NEW 330cm Width – a popular width, due to the vast amount of caravans the shelter can fit, Vango’s new 330cm width, also has a depth of 250cm, for ample living space.
Bracer Beams throughout the product increase the stability of the caravan awning, and ensure the flysheet is taut, so rainwater cannot sag on the roof panel.
- Optional Extra: MD100 Side Mesh Door set to aid with the airflow on the warmer days.
- Optional Extra: Elements Shield Annex – offers an optional 2-berth zipped annexe, for optional sleeping options.
- Touring Awning: this product is not designed to be left standing all season, on a seasonal pitch. The Balletto Elements Shield is for short-term use, any permanent or all-season pitching of the product would void the warranty and cause UV degradation, which is not covered under the warranty.
| Fabric Denier | 150 Denier (Polyester) DetailsDenier – a measurement used to determine the thickness of the tent flysheet. It relates to the fibre thickness, or thread counts used. The thicker the fabric, generally the stronger, and more durable the fabric will be. The denier really reflects the lifetime to be expected of the tent, and how quickly, it will be affected by UV Degradation. |
|---|---|
| Skin | Single DetailsDouble Skin Tent – A tent with an inner bedroom and a flysheet, most family tents are designed as a “Double Skin tent”, as it makes the tent more comfortable, and lessens the effects of condensation. |
| Features | Airbeam S.I Pro System – inflate the caravan awning from one central point on the awning. A new and revolutionary design of Single-Point Inflation – with a one-way airflow system to minimise issues if there is a leaking tube. Easy access positioning – the Airspeed valve is located externally, and centrally, meaning access with the pump is very quick, and easy. Split Access Door: The versatile door access enables you to roll a section away for a quick entry. Easy Access Doors: for more convenient access into the awning for both wheelchairs and prams, as there is no step-over access. The awning doorways lie flat on the ground. PVC Mud Strip: Positioned around the base of the Awning for easy cleaning, and to prevent the awning fabric from becoming stained by boggy weather conditions, or muddy pitches. Adjustable Pegging Points – allows the Awning to be pitched on uneven surfaces, and pegged securely. Fully Wind & Rain Tested: Tested with wind & heavy rainfall to the European Standard 5912 Diamond Clear Windows with zipped curtains – help enhance the privacy inside the awning. Bracer Beams included: Small Airbeams which are secured in between the main Airbeam structure for increased stability and a tauter awning. |
| Specifications | Fabric Specification: Element Shield Polyester Fabric 150 Denier Polyester Hydrostatic Head: 4000mm Waterproofing Fire Retardant Fabric ISO5912 ISO6941 – tried and tested products, in accordance to International Standards. Fully Taped Waterproof Seams DWR – Durable Water Repellent Finish – water bubbles on top of the fabric, and runs off. ColourLok fabric – slows and deters the effects of UV degradation. Product Specification: Weight: 21.94kg Packsize: 75.0 x 43.0 x 42.0cm Height: 192cm Length 250.0cm Width: 330cm Key Features: Single Point Inflation – inflate your awning from one, central location for an easier pitching experience. Split Access Doors for versatile door openings. Easy Access Doors – flat PVC panels along the base of the awning, prevent tripping hazards and make access for wheelchairs or prams, simple and easy. Zipped Privacy Curtains |
| Recommended Use | Perfect for touring caravan owners, wanting a short-term pitching awning. |
| Pitching Area (cm) | 380 * 300 |
| Pitching Time | 15 Minutes |
| Fire Retardant | Yes DetailsFire Retardant – all modern tent fabrics are fire-retardant under EN5912 European Safety Laws. Caution with fire must always be used, as flame retardant fabrics, will still catch fire given the right circumstances. |
| Number of Poles / Beams | 3 Main Beams + Bracer Beams |
| Poles or Air | Vango AirBeam™ DetailsMost tent structure are either Airbeam or Poled in design, both have advantages and disadvantages. Air tents are quicker to pitch, but more expensive when compared to traditional pole style tents. Some tents are hybrids, and combine poles and air technologies. |
| Poles Diameter / Beam Size | 10cm Diameter Beams |
| Pitching Order | Attach to caravan, and inflate the beams and peg out. |

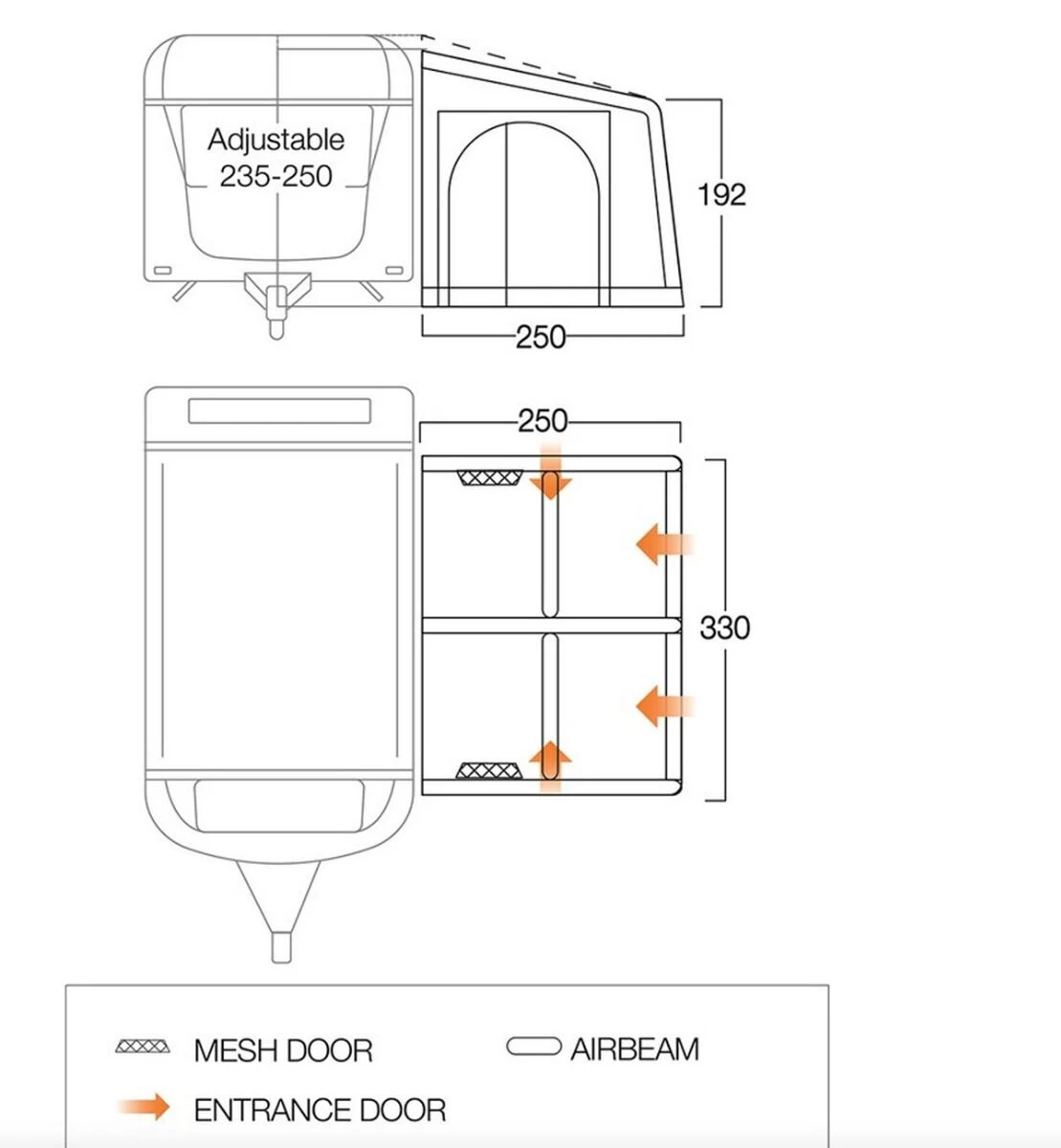

| Floor Dimensions | 330 * 250 |
| Supplied With | Oversized Bag Bracer Beams Phantom Airbeam Pump Steel Rock Pegs Reflective webbing straps Pack of 10 sky hooks PVC Mud Strips Draught Seal System Draught Skirt and Wheel Arch Cover |
| Pack Size (cm) | 75 * 43 * 42 |
| Weight (kg) | 21.94 |
| Awning Type | Caravan Seasonal (Temporary) DetailsSeasonal: A caravan awning specifically designed for touring, and temporary camping pitches. Ideal for fair weather campers, needing an awning for shorter trips. Usually uses lighter fabrics, for easier portability, and easier pitching. Residential: Ideal for those camping for longer durations, wanting an awning that can be left pitched all season, or for a month or more at a time. Residential awnings usually use heavier weight fabrics, designed to last longer, and not fade as fast in the UV sunshine rays. DriveAway VW Awnings: Designed to go onto VW or similar vans, or motorhomes with the correct attachment height. Can be left free-standing at the site if you need your vehicle to get off-site. Fixed VW Awnings: Reliant on the van or motorhome for the structure of the product. Van cannot be removed offsite once the awning is set up. |
| Width (cm) | 330 |
| Length (cm) | 250 |
| Height (cm) | 192 |
| Window Fabric | Diamond Clear Windows with Zipped Privacy Curtains |
| Groundsheet Fabric | PVC Mud Wall |
| Flysheet Fabric | Element Shield 150-Denier with Colourlok technology DetailsPolyester – a synthetic fibre, made from polymer units to create a textile fabric. Polyester is the most popular fabric for tent manufacturing, as it is durable, reliable and lighter in weight. Polyester does not breathe though, which creates more condensation. Polycotton – a blend of polyester and cotton, primarily cotton (usually around 65% cotton / 35% polyester split). Polycotton is a more natural fabric for camping, as it is breathable, far more durable material, reducing the effects of condensation. Offers greater versatility in hot and cold climates. Ripstop Nylon – a durable material used in tents which is strong and repairable due to its Ripstop properties. |
| Doors | 2 Front / 2 Side Doors |
| Colour | Grey Violet |
| Hydrostatic Head (mm) | 4000 DetailsHydrostatic Head (Tents) – a waterproof rating for technical fabrics measured in mm. The higher the rating the more waterproof the fabric is. A rating of 1500mm is deemed waterproof, but on a tent, look for a rating of 3000 or higher. Measured by the height of water column a fabric weave can take before it begins to “sweat”. “Polycotton” tents will not have a Hydrostatic Head level, as they are not treated for waterproofing. |
| Year of Manufacture | 2023 |
| Tent Collection | Vango Elements Shield Collection (Caravan Awnings) |
| Manufacturer | Vango Airbeam |
| Fitting-Height | 235-250cm |
| SKU | AWSBALLSH000002 |
